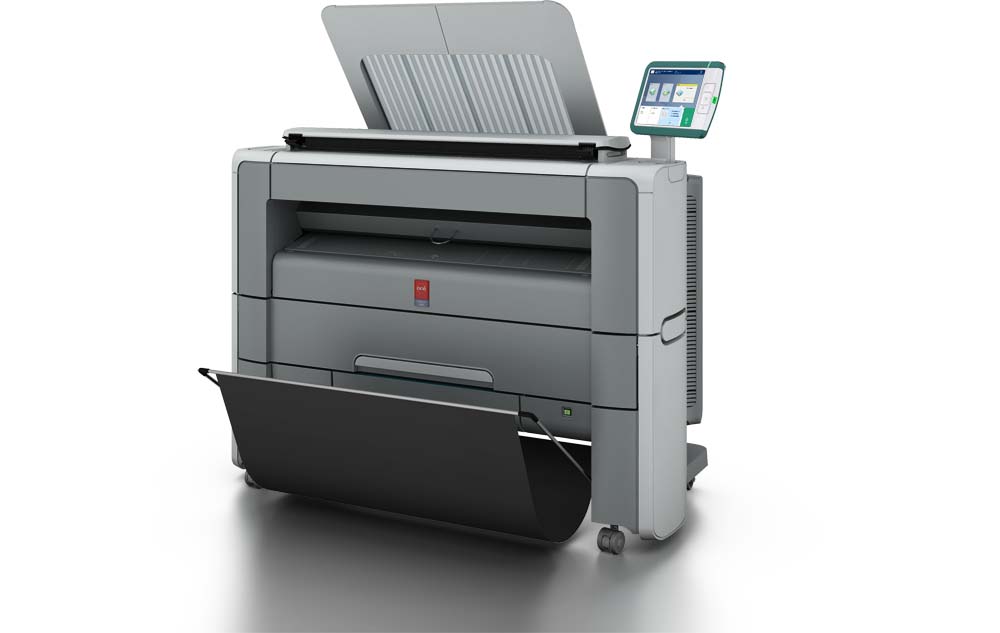

Océ PlotWave 360
Oce Plotwave 340 / 360
Océ PlotWave 360

Océ PlotWave 340

8777B001A

Brand: Océ

Series: PlotWave

Model: 340

Type: Ink

Click Here to View the Brochure

Call for price

SHARE
Share

Description

Cloud integrated, advanced large format technical document management

Touch the new way of printing with the Océ PlotWave 340 printing system. The Océ ClearConnect color touchscreen interface supports multi-touch gestures for intuitive control. It’s ideal for decentralized printing environments featuring workgroups of CAD professionals who require both productivity and ease of use. Walk-up users will appreciate the ability to access technical document files from their cloud of choice, preview files on the color screen, and print, all from the printer’s touchscreen. For demo watch it here.

Océ ClearConnect instant multi-touch printing

Use the multi-touch panel like a tablet or smartphone. Easily control the printer with your fingertips with the simple screen movements you are used to. Pan, zoom, swipe, spread and much more. Zoom in on details of a drawing. Check that documents are correctly positioned using the live preview to avoid errors. Print from and scan to your cloud, mobile phone, USB flash drive or network. Save time and avoid costly printing mistakes with easy shortcuts and instant green button printing.

Neat document delivery

Get nearly collated and stacked documents of up to 50 E-size plots on the top delivery tray.Originals stay clean with the optional front original tray. You do not need to make space for a large receiving table. Also very practical time savers are the inline Océ folder options. Fully integrated with your printer, they generate quality folded documents automatically so you can keep your desk clean and organized.

Get better color scanning results with Océ Color Image Logic technology

This technology automatically compensates for wrinkles and light colors to produce superior results. Originals are inserted face-up and paper width is detected automatically to minimize errors and waste.

ENERGY EFFICIENT Océ Radiant Fusing technology FOR FAST PRINTING

The Océ PlotWave 340/360 provides instant start-up time and reduced energy consumption. The printer heats only when printing.
When in idle mode, it is cold and uses almost no energy. With the Océ PlotWave 340/360 you don’t need a trade-off between speed and energy consumption.

Automated roll changing

Reduces physical strain and effort. Simply place the media roll on the built-in roll loading station. Paper is fed into the printer, cut and sized — completely automatically.

Reliable performance

Océ high resolution Pico Printing at 600 x 1200 dpi improves print quality dramatically. The system is constructed out of hard-wearing materials for a longer life.

Clean toner system

Completely closed toner system is within easy reach. Toner stays inside the printer, only where needed, to ensure high quality prints throughout the life of the system.

Fits your workflow

Make sure not only your printing system is productive but your entire workflow is as efficient as possible with the right software for managing print jobs.

Features :

  • Multi-touch user access
  • Full cloud integration
  • High-speed instant printing
  • Colour scanning
  • Reliable, high quality performance
  • Practical and time-saving
  • Energy efficient

Memory :

  • 4 GB DDR3

For Supplies, Click here.

Additional information

Brand

Series

Model

Condition

Type

System Type

Width

Imaging technology

Electrophotography (LED), organic photoconductor (OPC), clean closed toner system,
Océ Radiant Fusing technology

Toner

Océ black toner: 400 grams per bottle

Speed

Black & white: Océ PlotWave 340: 4ppm (D-size/A1);

GENERAL



Configuration

Multifunctional or printer only

Warm-up time

Less than 1 second, thanks to Océ Radiant Fusing technology

First print time

31 seconds (D-size/A1)
From sleep mode: 40 seconds (D-size/A1)

Size main engine (W × D × H)

60.6" × 31.5" × 58.9" (1,527 × 800 × 1,495 mm) including top delivery tray

Weight main engine

397 lbs. (180 kg

Certifications

EPA ENERGY STAR®, FEMP, TüV GS, CETECOM, CE, UL, cUL, CB, FCC Class A, RoHS

PAPER HANDLING



Paper rolls

1 or 2 rolls

Maximum paper capacity

Up to 1,300 ft., 650 ft. on a roll (up to 400 m, 200 m per roll)

Paper weight

18 – 28 lb. Bond; 60 – 110 g/m2

Roll width

11" – 36" (297 – 914 mm)

Output length

16.5" – 577.4 ft. (419 mm – 176 m)

Output delivery

Top delivery tray with air separation technology; up to 50 E/A0-size plots collated

Media type

Paper: Plain paper, Transparencies, Recycled paper, Colored paper
Film: Polyester, Antistatic, Contrast

USER INTERFACE



Size (W × D × H)

11.8" × 8.7" × 1.6" (300 × 220 × 40 mm), Touch screen: 10.4"

Resolution

800 × 600 pixels

Number of colors

16.2 million

Technology

Projective capacitive touch

Operation

3 hard buttons: [Wake-up], [Stop, interrupt, abort], [Home]
Multi-touch functions: pinch, swipe, flick, zoom, pan

Features

View optimization: Tilt (-4 to +45 degrees) and rotate (-45 to +180 degrees)
Status light (red, orange, green)
USB interface with indication light

CONTROLLER



Client Operating System Support

Océ print driver for Windows® 7 (32 & 64-bit)/Windows Vista® (32 & 64-bit)/Windows XP®/Windows Server 2003®/
Windows Terminal Server®, Citrix® Metaframe and Presentation Server
Adobe® Postscript® 3™ driver for Windows XP® and Server 2003®, Mac® OS v9, OSX (only Adobe® Postscript® 3/PDF
driver supported)

Processor

Intel Celeron T3100 @1.90GHz

Memory

Hard disk

500 gb

Printer drivers

Microsoft® certified Windows® driver 2.0, Adobe® Postscript 3™ driver

Interface

Ethernet 100 Mbits/s, 1 Gbit/s

Page description language

TIFF, JPEG, HP-GL, HP-GL/2, DWF, Calcomp 906/907/951, CALS, NIRS, NIFF, ASCII, C4

Security

E-shredding, IPSec, HTTPS, extended security protection for administrator, audit logging

Options

Adobe PostScript 3/PDF file interpreter

Cloud

WebDAV

SCANNER



Description

Contact Image Sensor (CIS) with Océ Color Image Logic technology

Scan resolution

600 × 600 dpi

Scan speed

Copying: Up to 31.8 ft./min. (9.7 m/min.)
Black & white scanning: Up to 47.9 ft./min. (14.6 m/min.)
Color scanning: Up to 15.7 ft./min. (4.8 m/min.)

Scan format

TIFF, PDF, PDF/A, JPEG, CALS, multi-page PDF, multi-page PDF/A and multi-page TIFF

Scan destination

Local USB flash drive, FTP, SMB, Controller, mobile device via Océ Mobile WebTools

Original width

8.2" – 36" (208 – 914 mm)

Original length

8.2" – 52.5 ft. (208 mm – 16 m)

Original thickness

Maximum 0.03" (0.8 mm) non-rigid documents

Zoom

Scale to standard format
Custom: 10 – 1,000%

Preset modes

Lines & text, Lines & text draft, Folded lines & text, Photo, Colored, Dark original, Blueprint

Size scanner (W × D × H)

43" × 12" × 5.5" (1,097 × 308 × 140 mm)

Weight scanner

54 lbs. (24.5 kg)

ENVIRONMENTAL



Sound power level

Standby mode: maximum 26 dB
Print mode: maximum 58 dB

Ozone emissions

0.001 mg/m3

Power requirements

100 – 120 V, 200 – 240 V; 50/60 Hz; 20 – 10 A

Power consumption

Sleep mode: 39 W
Standby mode: 92 W
Print mode: 1.5kW
Per print: 45 Wh per E-size/A0 (EPA ENERGY STAR TEC method)

Recyclability

Hardware: made of steel or highly recyclable plastics: up to 95% of the engine can either be upcycled or recycled
Remaining 5% is non-toxic waste
Toner: bottles made of highly recyclable HDPE (High Density Polyethylene)
