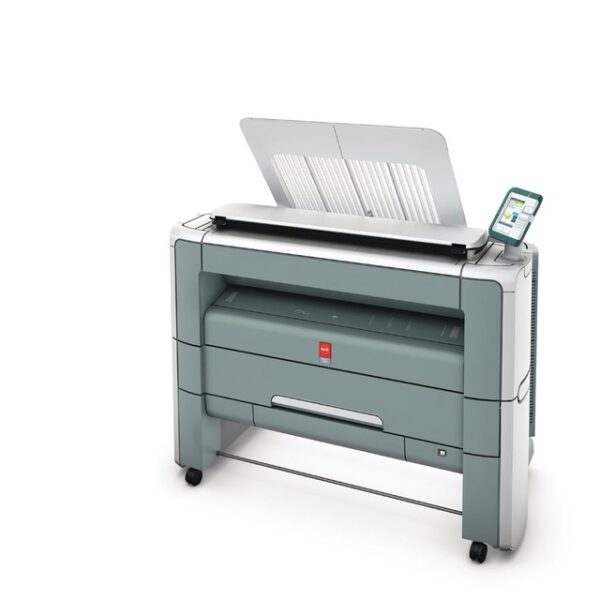

Océ PlotWave 300
Oce PlotWave 300
Océ PlotWave 300

Océ PlotWave 300

4913309

Brand: Océ

Series: PlotWave

Model: 300

Type: Ink

Size: 36″

Click Here to View the Brochure

Call for price

SHARE
Share

Description

Simple, green, durable, all-in-one large format system

Printing, copying and scanning large format technical documents just got easier for everyone. The next wave of Océ monochrome multi-functional systems starts with the Océ PlotWave 300 system. It cuts energy usage in half, fits in small spaces, and turns out page after page of nearly flawless documents—without missing a beat. And with the design, construction, and reliability you’ve come to expect from Océ. For demo on stacking, watch it here.

The next wave in simplicity: easy to use yet powerful; flexible integration with your workflow

Print and scan documents at the system with a USB® flash drive. Easily switch rolls on the fly with automated roll changing. Feed originals in face-up with digital width recognition for fewer scanning errors. Say goodbye to damaged prints and backaches with the top delivery tray. Simple but powerful job submission and print management. Easy integration into your IT infrastructure.

The next wave in green technology: cut energy usage in half

Conventional roller-based systems have long warm-up and cool-down periods, which waste time and energy. Eco-friendly Océ Radiant Fusing technology is designed specifically to provide the most efficient means of fusing toner onto paper. Thin metallic tiles made of a highly durable alloy are used to optimally radiate heat, fusing the toner onto the paper. They heat up and cool down very quickly. That means the system starts up instantly, uses half the energy of comparable systems, makes no noise when it is idling, and requires no extra ventilation to keep it cool. Thanks to a catalytic convertor system virtually no ozone emissions are produced. All in all, the low noise, heat, and ozone emissions means a healthier working environment.

The next wave in durability: makes your money go further

The Océ PlotWave 300 system is constructed of solid, hard wearing materials that are designed to make it last longer than comparable systems. Critical components, such as the imaging drum and other moving parts, are completely enclosed to reduce contamination and wear and tear. High use parts, like the paper drawers and panels, are made of reinforced materials to further extend the system’s lifetime. The result—a system built to withstand the demands of many users, ideal for a walk-up printing environment.

The next wave in quality: improves your image

Océ Color Image Logic technology automatically produces high quality scans without complex user interaction. Océ high resolution pico printing technology enables you to consistently produce drawings with fine details, sharp lines and text, and smooth area fills. The right formula for professional results and happier customers.

Fits anywhere

The compact green design of the Océ PlotWave 300 system is ideal if you have limited room. It fits in small spaces and does not require ventilation or an extra large table for stacking.



Features :

  • Printing, copying and scanning large format technical documents just got easier for everyone. The next wave of Océ monochrome multi-functional systems starts with the Océ PlotWave 300 system. It cuts energy
    usage in half, fits in small spaces, and turns out page after page of nearly flawless documents—without
    missing a beat. And with the design, construction, and reliability you’ve come to expect from Océ.

Memory :

  • 1 GB

Hard drive :

  • 160 GB

For Supplies, Click here.

Additional information

Brand

Model

Type

Series

Condition

Width

System Type

,

Scanner Size

43.2" w › 12.1" d › 5.5" h fits on top of print engine

Scanner Weight

44 lbs.

GENERAL



Description

Monochrome wide format print/copy/scan system with color scanner

Type

Electrophotography (LED) with organic photoconductor (OPC) and closed toner system

Speed

4 D/minute, FPOT (First Print Output Time) from Sleep 42s for a D–size

Warm-up time

Instant with Océ Radiant Fusing technology

Configurations

Printer or Multifunction (print, copy, scan) 1 or 2 rolls

Roll options

1–2 rolls

Output delivery

Compact and ergonomic top delivery tray with air separation; up to 50 E-size plots collated

Power consumption

Active mode: 1.2 kw / Ready mode: 101w / Sleep mode: 101w ENERGY STAR®

PRINTER



Print resolution

600 x 1200 dpi

Paper capacity

Up to 650 ft., max. 2 rolls

Output sizes width

11" x 36"

Output sizes length

16.5" to 577' for long plots

Paper weight

18–28 lb. bond

Media type (www.oceusa.com/imagingsupplies)

Paper: plain, recycled, colored and transparent; Film: polyester, antistatic and contrast

CONTROLLER



Controller type

Océ PowerM™ controller with Windows XP® Embedded

Hard drive

160 gb

Memory

Page description language

HP-GL, HP-GL/2, TIFF, JPEG, DWF, PS/PDF-option, CALS, NIFF, NIRS, ASCII, Calcomp
906/907/951, C4

SCANNER



Scanner type

Contact Image Sensor (CIS) with Océ Color Image Logic technology

Scan resolution

600 › 600 dpi optical resolution

Scan speed

Up to 23 linear ft./min. (copying) and 38 linear ft./min. (monochrome scanning)

Scan format

TIFF, Multipage TIFF, PDF/A, Multipage PDF/A, JPEG, CALS

Scan destination

Local USB flash drive, controller, network via FTP or SMB

Original size width / length

8.2"–36" / 8.2"–630"

Original thickness

Up to 0.03"

Scaling

Scale to standard format, custom scale 10–1000%

Preset modes

Lines & text, lines & text draft, colored, photo, dark originals, blueprint, folded line/text

Network information



Client OS support

Windows driver for Windows 7 (32 & 64 bit), Vista® (32 & 64 bit), XP (32 & 64 bit), Windows Server®
2008 (32 & 64 bit), and Windows Server® 2003 (32 & 64 bit). Windows Terminal Server, Citrix®
Metaframe and presentation server
Adobe Postscript3 driver for Windows XP and Windows Server 2003. MacOS® 9

Standard interface

Ethernet 100 Mbits/s, 1gb/s

Network protocols

TCP/IP, SNMP, IPX/SPX, Windows APIPA, IPv6

Printing protocols

LPR, Novell® NDPS, FTP

Scanning protocols

FTP, SMB

Security

Electronic file shredding permanently removes all traces of deleted jobs on the controller
Complies with DoD 522-22M standard; IPsec

ENVIRONMENTAL DATA



Power consumption active mode (printing)

Engine (printer + scanner): 1.2 kw; Controller: 38w

Power consumption ready mode (standby)

Engine (printer + scanner): 64w; Controller: 37w

Power consumption sleep mode

Engine (printer + scanner): 64w; Controller: 37w, earned the ENERGY STAR®

Power requirements (V/Hz/Ams)

100–240V, 50/60Hz, 20–10A ( 20A for <150V)

Energy consumption per print

37 wh per E–size calculated average based on EPA ENERGY STAR TEC method

Sound pressure active mode (printing)

58dB(A) measured at operator level conform ISO norm 7780

Sound pressure ready mode (standby)

26dB(A) measured at operator level conform ISO norm 7780

Ozone concentrations

0.001mg/m3
(<0.0005ppm) in a 25m3
room with natural ventilation conform ISO norm 28360

Recyclability hardware

Made of steel or highly recyclable plastics that up to 95% of the engine can either be upcycled
or recycled. Remaining 5% are non toxic waste.

Recyclability toner

Bottles made of highly recyclable HDPE (High Density Polyethylene)

Size print engine

60.1" w › 31.5" d › 58.9" h including top delivery tray

Weight print engine

397 lbs.

Size scanner

43.2" w › 12.1" d › 5.5" h fits on top of print engine

Weight scanner

44 lbs.

SUPPLIES



Consumable type

Océ black toner

Size

Bottle of 0.9 lb.
