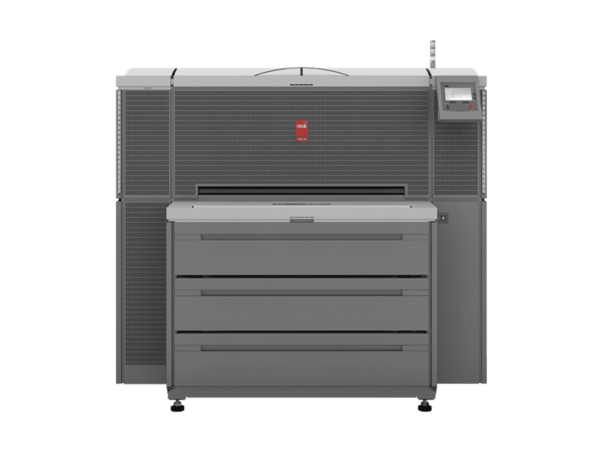

Océ PlotWave 900
Océ PlotWave 900
Océ PlotWave 900

Océ PlotWave 900

PW900

From: $30,000.00

From: $30,000.00

Brand: Océ

Series: PlotWave

Model Number: 900

Type: Toner

Click Here to View the Brochure

COMPARE
Clear
SHARE
Share

Description

Steadfast reliability for productive printing

The Océ PlotWave 900 has the speed, reliability and flexibility to break all output records for a black & white system. That makes it the most productive in its class. The cost-effective design gives you direct earning power, while Océ Copy Press® technology offers unmatched environmental benefits. Plus, you get brilliant image quality to satisfy the most demanding customers. With smart operational time savers that make it easier than ever for your operator to keep the system running smoothly, without a hitch. For Demo, watch it here.

High-volume throughput

Today the most advanced architectural, engineering and construction companies use Océ systems to build the world around us. As the market leader in engineering printing, we understand what it takes to get the job done in high pressure environments. The Océ PlotWave 900 delivers the highest possible output from a single printing system.

Direct earning power

The Océ PlotWave 900 is designed to run for three million meters or eleven years, even in a high-volume and high-stress environment. Thanks to the superb support of our award-winning service organization, many of our customers may use the system even longer. That makes this system your safest long-term investment. And the more you print, the faster you will earn back your investment.

Outstanding print quality

Investing in quality pays off. Every year millions are lost in the architectural, engineering and construction industries due to misinterpreted drawings from poor-quality reproductions. The Océ PlotWave 900 delivers the best reproduction quality in its class, thanks to 600 x 1200 dpi print quality, advanced image processing and Océ Copy Press technology. The system produces crisp line drawings, clear grayscale reproduction of color originals, distortion-free photo enlargements and smoothly rasterized documents without moiré artifacts. Improvements in the toner unit ensure that solid black areas are printed consistently over
time.

Improved job management

Keeping your production line going requires more than just high-speed throughput. The Océ PlotWave 900 offers smart operations management that makes it easier for your operators to keep everything moving smoothly and efficiently. A web-based interface controls print jobs via the network to give you more flexibility. Convenient advance-alert functions and on-the-fly toner refill ensure that you don’t have to stop the press unnecessarily. To prevent delays and production stops, the status beacon on top of the printer grabs the attention of the operator when intervention is required. All geared to help you meet short deadlines and increase your system utilization.

Unmatched environmental benefits

The Océ PlotWave 900 creates a cleaner, more comfortable work environment. The Océ Copy Press technology uses no developer and is 100% toner efficient, so there is no waste disposal. The closed toner system eliminates toner pollution. It keeps toner inside the machine and off hands and clothes. Image fusing takes place at a much lower temperature compared with conventional technologies, which reduces energy consumption during print runs. The photoconductor is made from non-harmful substances and there is virtually no ozone emission.

Features :

  • Océ Copy Press Technology Reduces Maintenance, Increases Up-Time and Raises Production
  • Realize Faster Turnaround Times With a Maximum Print Speed of 43 Feet Per Minute.
  • Print From Up To 6 Rolls At Consistent Speed Even When Switching Between Different Media Sizes.
  • Produce Large Format Copies, Scans and Prints Concurrently With The Powerful Océ Power Logic Controller.
  • Receive Real-Time Feedback on System Status and Job Progress Via The Printer’s User Panel and On Remote Devices Such as Tablets.

Model :

  • PlotWave 900

Manufacturer :

  • Océ

Memory :

  • 2 GB

Hard disk :

  • 2 x 250 GB

For Supplies, Click here.

Additional information

System Type

, ,

Brand

Condition

Model

Series

TECHNOLOGY



Imaging technology

LED – OcéCopy Press

Toner

Océ PlotWave 900 Toner, 3000 grams per carton (2 bottles)

Speed

13 meters per minute; 10 ppm (A0); 18 ppm (D)

Resolution

600 x 1200 dpi

General



Configuration

Printer only or multifunctional

Warm-up time

15 minutes

Size main engine (WxDxH)

172 x 114 x 143 cm; 67.7 x 45 x 55.2"

Weight main engine

937 kg; 2065 lbs

Certifications

EPA ENERGY STAR®, TüV GS,CETECOM,CE, UL, cUL,CB, FCCClass B, RoHS

PAPER HANDLING



Paper rolls

4 or 6 rolls

Maximum paper capacity

1200 m, 200 m per roll; 3900 ft, 650 ft on a roll

Paper weight

64 – 110 g/m2 ; 17 – 28 lb

Roll width

297 mm – 914 mm; 11" – 36"

Roll length

210 mm – 200 m; 8.5" – 650 ft

Manual feed width

210 mm – 914 mm; 8.5" – 36"

Manual feed length

297 mm – 200 m; 12" – 650 ft

Output delivery

Media type (www.mediaguide.oce.com)

CONTROLLER



Operating system

Windows® XP / Vista / 7 / Server 2003 / Server 2008, Terminal Server,Citrix® MetaFrame,
Mac® OS 9 / OS X (Adobe® PostScript®
3/PDF driver)

Memory

Hard disk

2 x 250 GB

Interface

10/100/1000 BaseT with RJ45

Page description language

HP-GL, HP-GL/2, TIFF, JPEG, DWF, Adobe PostScript 3/PDF,CALS-I, NIRS, ASCII,
CalComp,C4

Protocols

TCP/IP, SMB (scan-to-file), IPv6, IPX/SPX, FTP, LPD

Printer drivers

Océ Windows Printer driver, Océ PostScript 3 driver

Security

E-shredding

Options

Adobe fonts:Chinese Traditional /Chinese Simplified / Japanese / Korean
Océ View Station
Océ Repro Desk Studio, Océ Repro Desk Select, Océ Repro Desk Professional
Océ Remote Services

ENVIRONMENTAL



Sound power level

Standby mode: maximum 49 dB
Print mode: maximum 61 dB

Ozone emissions

0.002 mg/m3

Power requirements

100 – 120 V, 200 – 240 V (3 phases); 50/60 Hz; 16 A

Power consumption

Sleep mode: 13 W, 16 W (multifunctional)
Standby mode: 1 kW, 1kW (multifunctional)
Print mode: 4.5 kW, 4.6 kW (multifunctional)

SCANNER



Description

Océ PlotWave 900 scanner with Océ Image Logic® technology

Scan resolution

200 – 400 dpi

Scan speed

10 m/min; 32.8 ft/min

Scan format

TIFF, PDF/A, JPEG,CALS, multi-page PDF/A and multi-page TIFF

Scan destination

FTP, Network Directory,Controller

Original width

210 mm – 914 mm; 8.5" – 36"

Original length

210 mm – 200 m; 8.5"- 650 ft

Original thickness

Maximum 3 mm; Maximum 0.12"

Zoom

25 – 400 %

Preset modes

Lines & text, Photo, Grays & lines, Dark original, Blueprint,Cut & paste, Printed matter

Size scanner (WxDxH)

132 x 64 x 123.5 cm; 52 x 25.2 x 48.6"

Weight scanner

147 kg; 325 lbs
