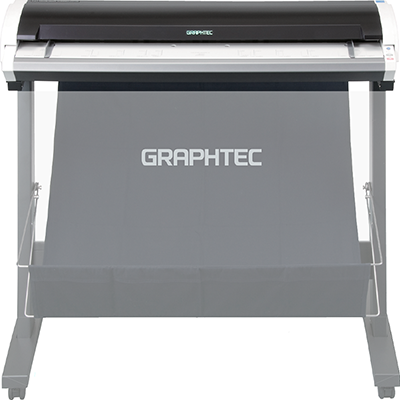

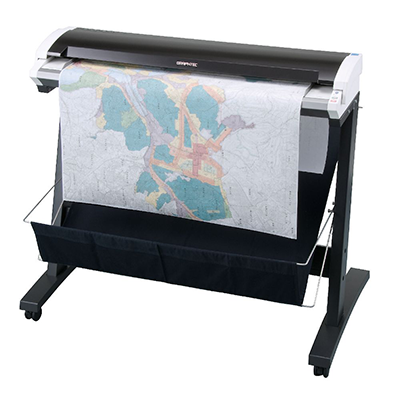

Graphtec CSX550-09 Scanner

Brand: Graphtec

Series: CX500

System Type: Scanner

Click Here to View the Specs sheet

Call for price

Advanced Scanning Engine – LUXios

It is a coined word that symbolizes the proprietary technology of Graphtec scanners, focusing on the process of the “reading the light” and “creating the image in fast”.

“LUX” (light in Latin)
“image operation”
“System” and “speed”

Graphtec have developed the high-precision image scanner sticking to the process of the light and image.

The fastest scanning speed in its class

Graphtec Corp has improved the total throughput time by combining the fastest feed speed with optimized 64 bit technology.

Graphtec scanners have the following two scanning mode.
(1) Scan only
(2) Scan and File

In the image processing, the scanned image is required to be edited before it is saved to the file. Graphtec scanners exhibit a faster throughput when it is used in this image processing way. In other scanner, the “scan only” mode is not available. The editing of the image will be waiting until the scanned image data is saved.

Graphtec proprietary color matching technology enables production of images with accurate color reproduction and uniformity.

  • Overall color is not good in other scanner. It is required the adjustment in an onerous way for matching the color.
  • In the CSX series, the color can be matched by simple calibration.

Produces high-quality images by using a new digital processing system. The RGB colorshifts that typically occur between 200 and 300 dip and greatly reduced by Graphtec newly designed digital processing system. This means that high-quality image are available at fast scanning speed.

Produces images of sharp edges by using a new digital processing system. The blurry image is not appeared around the characters and lines. The characters and lines have always sharp edge

Supported the Abobe® RGB compatible color space

Support sRGB and Abobe® RGB compatible color space for wider color reproduction. The Abobe® RGB compatible mode supports a wider color space than sRGB. It improves color reproduction of the printed document.

  • sRGB – it is a standard color space for use on various devices such as monitor, inkjet printer, camera, and others. The hue and saturation are specified to unify the differences in color reproduction between devices.
  • Adobe RGB – it is an RGB color space developed by Adobe Systems. It was designed to encompass most of the colors achievable on CMYK color printer. It can be represented colors on the printed document that can not be represented in the sRGB.

Enhanced the Gray Scan mode

The brightness of color on the document needs to be detected for scanning the document in the grayscale mode. Triple light source in the CIS is used to create white light for scanning in the grayscale. Cyan, magenta and yellow colors are recognized in the same level as other colors.

When the setting of the Gray balance on the software is set to the OFF, the single light (green) sourse is used for scanning the document. The detection of color brightness for green and magenta color is emphasized.

When the setting of the Gray balance on the software is set to the ON, the triple light (R, G, B) souse is used to create white light for scanning the document. The detection of color brightness for green and magenta color is not emphasized. Cyan, magenta and yellow colors are recognized in the same level as other colors.

Weight 55.11 lbs
Brand

System Type

Series

Technical Specification

Scanning document width 257 mm (10.1 inches) to 965 mm (38.0 inches)
Effective scanning area – Width 50 mm (2.0 inches) to 932.2 mm (36.7 inches),
Effective scanning area – Length Programmable 50 mm to 999.99999 m (It can be set in the software. Actual length governed by the performance of the PC and the condition of the document. (*1))
Document size ISO (JIS) A0, A1, A2, A3, A4, A0 carrier sheet, A1 carrier sheet
JIS B1, B2, B3, B4
DIN A0, A1, A2, A3, A4
ANSI (Engineering): E, D, C, B, A
ANSI (Architectural): E, E1, D, C, B, A
User size (Programmable up to 932.2 mm (W) x 999.99999 m (L))
Auto detection of document size Auto detects the standard size to fit the document based on the scanned document width
Document thickness 0.05 mm to 1.6 mm
Scanning margin 0 mm (+/- 0.5 mm) at front and rear edge of document

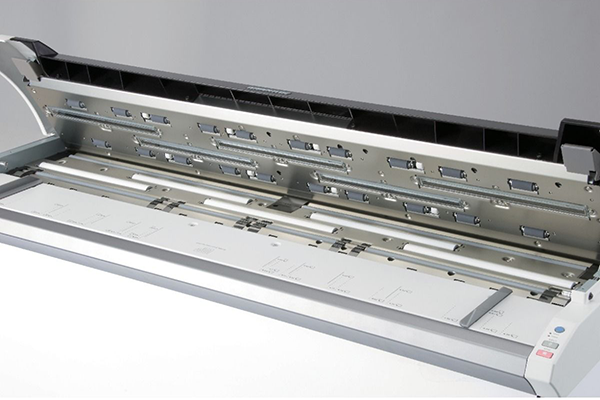

Scanning system Main Contact image sensor (CIS) (Five A4 sensors are arranged in a staggered pattern)
Scanning system Sub Document feeding system
Document loading Face-up
Document loading – Optical resolution 1200 dpi
Document loading – Output Color: 48 bits/pixel, Grayscale: 16 bits/pixel
Interpolated resolution 50 dpi to 9600 dpi (steps of 1 dpi)
Document feeding speed (at resolution of 400 dpi, high speed mode) Monochrome- 12 inches/sec
Gray- 12 inches/sec
24bit color – 4 inches/sec
Scanning quality High Speed, Normal, High Quality
Scanning speed (Document size: A0, Resolution: 400 dpi) – Monochrome High speed – 7 sec,
Normal scan – 11 sec
High quality – 12 sec
Scanning speed (Document size: A0, Resolution: 400 dpi) – Gray High speed – 7 sec
Normal scan – 11 sec
High quality – 12 sec
Scanning speed (Document size: A0, Resolution: 400 dpi) – 24bit color High speed- 15 sec
Normal scan – 28 sec
High quality – 29 sec
Scanning accuracy +/-0.1%, or +/-1 pixel (whichever is greater)
Gradation – Monochrome Bi-level, half-tones (dithering, error diffusion)
Gradation – Gray 256 shades
Gradation – Gray (RGB) 256 shades
Gradation – Color 24bit, 8bit
Color space sRGB, Adobe® RGB compatible
Interface USB2.0 (High-speed), LAN (10BASE-T/100BASE-TX/1000BASE-T)
External dimensions (W x H x D) Excluding stand: approx. 1097 mm x 160 mm x 322 mm
Including stand: approx. 1097 mm x 972 mm x 717 mm
Weight Excluding stand: approx. 55lbs
Including stand: approx. 85lbs
Conforming standard UL & FCC (USA), CE mark (Europe), CCC (China)
Software Scanning Master Pro Color, Scanning ARTS 2 for Win
Supported Operating System (OS) for the software Windows 10 / 8.1
Supported Operating System (OS) for the software – CPU Dual Core or high grade
Supported Operating System (OS) for the software – Memory 3.0 GB or more
Supported Operating System (OS) for the software – HDD Needs enough space for storing scanned image data
Supported Operating System (OS) for the software – Monitor 1024 x 768 pixels or more, True color display
