Canon TM Series

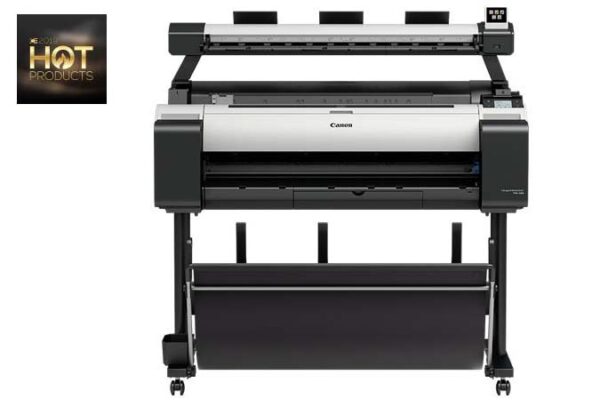

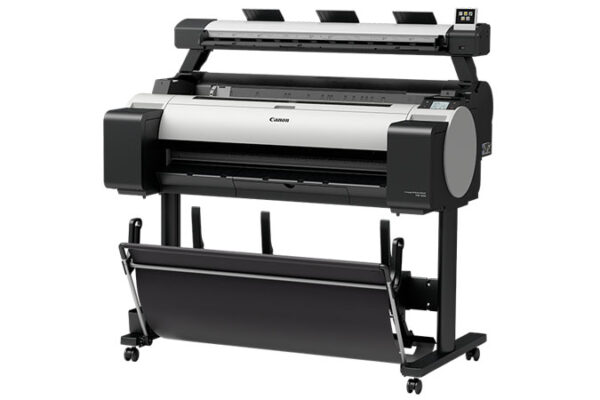

Canon imagePROGRAF TM-300 MFP L36ei

3058C002-6

$6,995.00

Canon imagePROGRAF TM-300 MFP L36ei

Brand:  Canon

Series:  TM

Model: imagePROGRAF

Type: Ink

Click Here to View the Brochure

Share
COMPARE
SHARE
Share

Description

Features :

  • LUCIA TD Pigment Ink Set
  • Fast Printing
  • The TM Series large-format printers come equipped with several security features designed to help prevent leaks of confidential information:
  • The TM-300 is well suited for busy office environments as it is 60% quieter than previous imagePROGRAF printers and offers less distraction in the workplace.
  • The TM-300 features a 3″ color touchscreen operation panel making it easy to view printer information as well as perform simple operations.
  • A good fit for small offices, the compact TM-300 has a small footprint for a large format aqueous inkjet printer.
  • Wi-Fi Compatible
  • Print Head PF-06 is engineered to work with the printer’s high-speed carriage and high-frequency ink ejection to help facilitate fast printing.

Additional information

System Type

Ink Category

Brand

Model

Series

Width

Condition

Printer Type

5-Color 36-inch Printer

OS Compatibility

Windows 7 (32/64 bit), Windows 8.1 (32/64 bit), Windows 10
(32/64 bit), Windows Server 2008 R2, (32/64 bit), Windows
Server 2012 (64 bit), Windows Server 2012 R2 (64 bit), Windows
Server 2016 (64 bit), Macintosh OS X v10.10.5-v10.12x

Memory

Maximum Roll Print Length

Roll Feed – 59' (18 meters)

Maximum Media Roll Diameter

5.9 (150mm)

Print Languages

SGRaster, HPGL/2, HP-RTL, JPEG, PDF

Physical Dimensions

42 x 51 x 35

Weight

approx.134 lbs (roll holder included, no inks, no print heads)

Software Included

Accounting Manager, Apple AirPrint, Canon Print Service,
Device Management Console, Direct Print & Share, Free
Layout Plus, imagePROGRAF Printer Driver for Windows®/
Mac®, Media Configuration Tool, PosterArtist Lite for
Windows, Canon PRINT Inkjet Selphy, Easy-Photo
PrintEditor,* Optimized Driver for AutoCAD, Free Layout

Print Head

PF-06

Number of Nozzles

Matte Black: 5,120 Nozzles
Other Colors: 2,560 Nozzles per Color

Ink Type

Pigment: Matte Black (MBK), Cyan (C), Magenta (M),
Yellow (Y), Black (BK)

Ink Tank

Shipped with Printer: MBK (130 ml), BK, C, M, Y (90 ml)
Replacement: PFI-120 (130 ml) or PFI-320 (300 ml)

Media Feed

Roll Feed: One Roll, Top-loading, Front Output

Media Width

Roll Feed: 8"-36"(203 mm –914 mm)
Cut Sheet: 8"-36"(203 mm –914 mm)

Media Cutter

Durable Dual-Blade Rotary Cutter

Interface

Standard (Built-in): USB 2.0 Hi-Speed, 10/100/
1000Base-T/TX, Wireless LAN (IEEE 802.11 b/g /n)■

Power Supply

AC 100–240V (50-60 Hz

Power Consumption

Maximum: 69 W or Less
Standby: 3.6 W or Less
Power Off: 0.3 W or Less (Executive Order Compliant)

Certifications

Electrical Safety Regulations
C TUVus (U.S.A.), C TUVus (Canada)
Electromagnetic Interface Regulations
FCC Part 15B (U.S.A.), IC (Canada)
Radio Regulations
FCC Part 15C (U.S.A.), IC (Canada)
Environmental Certifications
ENERGY STAR® (Worldwide

Operational Environment

Temperature: 59° – 86° F (15° – 30° C)
Relative Humidity: 10 – 80% (Non Condensation)

Printer Dimensions (H x W x D) and Weight

(With Basket Opened)
42" x 51" x 34" Approx. 130 lb

Package Dimensions (H x W x D) and Weight

With Stand, Basket, and Pallet
38" x 58" x 36" Approx. 229 lb.

Options

• 2"/3" Roll Holder Set (RH2-35)
• PosterArtist
User-Replaceable Items
• Ink Tank (PFI-120/PFI-320)
• Print Head (PF-06)
• Maintenance Cartridge (MC-31)
• Cutter Blade (CT-08)

What’s In The Box

Printer, TX Basket, Stand, 2”/3” Core Media Spool
(Adapters Included), Power Cord, Tools and Screws, Print
Head, Maintenance Cartridge (Installed), 5 Ink Tanks
(130 ml: MBK, 90 ml: BK/C/M/Y), Sample Heavyweight
Coated Paper (A2/2 Sheets), Ethernet Card (built-in),
USB 2.0 High-speed Interface, USB Connection Sheet,
iWR Service Terms Leaflet, User Manual, Quick Setup
Guide, User Software CD for Windows (Printer Driver
Utilities), PosterArtist Lite CD, User Registration Card

L36ei SERIES SCANNER

SPECIFICATIONS

L36ei Series Scanner Specs

Scan Speed
• 24-bit Full Color @ 200 dpi: 1" (per second)
• 8-bit Grayscale and Monochrome @ 200 dpi:
3" (per second)

Scan Modes
• 16.7-million Color RGB (24-bit)
• 256-level Grayscale (8-bit)
• Black and White (1-bit)

Color Space
Normalized RGB

Resolution
600 dpi (optical)

Scan Accuracy▲
+/- 0.2%

Maximum Image Width
36"

Maximum Media Width
38"

Maximum Scan Length
109"

Maximum Media Thickness
0.020" (5 mm)

Digital Imaging Technology
Contact Image Sensor (CIS) Technology
(SingleSensor Technology Assembly)
• Full width SingleSensor CIS Assembly
• 24-bit RGB digital color image capture
• 8-bit grayscale image capture
• Panchromatic monochrome and black and white
• Bi-directional extra long-life LED light system for
optimum object illumination and instant-on
scanning capability

Scanner Interface
Scan to USB – USB2 interface
(Flash drive max. size = 128 GB – FAT32)
Copy/Scan to Network – Ethernet interface
(>1 GB Ethernet connection for network configuration)

Operating Environments
10 – 35°C, 35-80% RH, Non-condensing

External Power Supply
100-240 VAC Autosensing +/- 10%, 50-60Hz

Scanner Power Consumption
• 11.7 W (Scanning)
• .06 W (Standby)

Compliances
CB, CE, FCC, UL, ENERGY STAR,® ICES-003, CUL, S Mark

Dimensions (H x W x D) (with Paper Tray Extended)
5.2" x 48.7" x 9.96"

Stand and Scanner Weight
Approx. 14.5 lb.

What’s In The Box?
• L36ei Scanner with Power Cord
• Ethernet Cable
• 2 Mounting Brackets
• CD for ScanApp Lei Software
• Lei Scanner Guide
• Document Return Guide
• Calibration Target
• Feet for Desktop Use
• Two Paper Edge Guides and Paper Refeed Preventers
