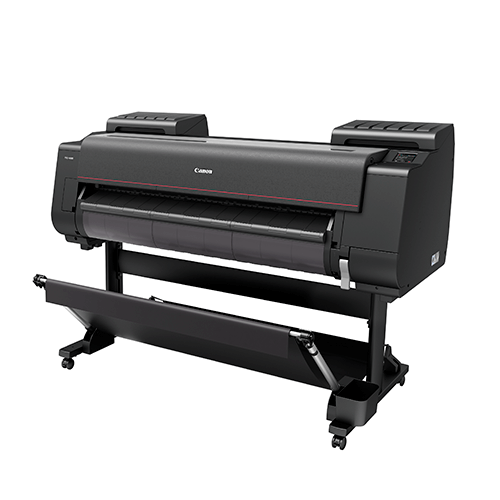

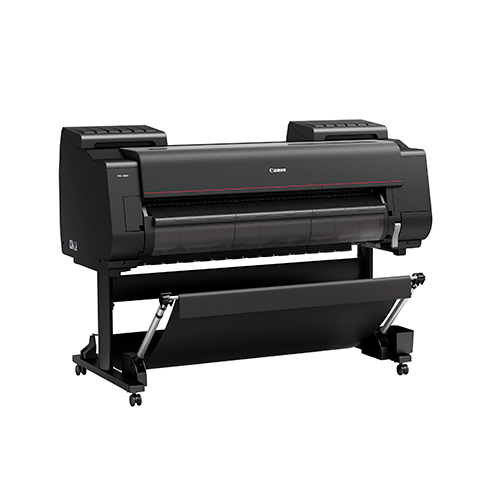

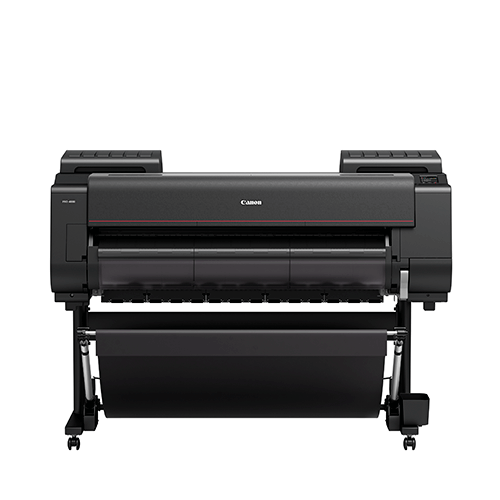

Canon imagePROGRAF PRO-4000

1127C002

From: $5,995.00 From: $4,495.00

From: $5,995.00 From: $4,495.00

Brand: Canon

Series: iPF Pro

Model No: Pro-4000

Type: Ink

Size: 44″

Click Here to View the Brochure

COMPARE
Clear
SHARE
Share

Description

For the very best photographic print quality, the imagePROGRAF PRO-4000 can produce images up to 44” with outstanding speed and reliability.

• Using LUCIA PRO 12 inks, colours are richer and blacks are deeper, producing prints that are faithful
to your images.
• A new 1.28” wide print head enables faster printing while maintaining high print quality.
• Optional dual roll unit supports continuous paper feed or automatic take-up of the printed output.
• An attractive black body hardware design with an accentuated red line denoting the link with Canon
EOS digital cameras.
• Ergonomic design with a flat top surface for print checking and a 3.5” colour LCD touch screen
operation panel.
• Fast and easy printing directly of PDF and JPEG file formats from USB memory stick.
• Wi-Fi functionality for easy connection and quick setup to wireless networks.
• Guaranteed colour consistency between jobs and different production sites.
• High-capacity “hot swap” ink tanks for uninterrupted printing.
• The Print Studio Pro plug-in lets you print effortlessly from professional editing software
such as Adobe Lightroom®, Adobe Photoshop® and Canon’s Digital Photo Professional.

Memory :

  • 3 GB

Hard Drive :

  • 320 GB

Additional information

Weight 100 lbs
Brand

Series

Model

Rolls

,

Width

Condition

System Type

Maximum media roll diameter

170 mm

Printer Type

12 Colour 44"/1118mm

Print Technology

Canon Bubblejet on Demand 12 colours integrated type
(12 chips per print head x 1 print head)

OS Compatability

Microsoft Windows 32 Bit: Vista, 7, 8, 8.1, 10, Server 2008,
64 Bit: Vista, 7, 8, 8.1, 10, Server 2008/R2, Server 2012/R2
Apple Macintosh: OSX 10.7.5 ~ 10.11

Printer languages

SG Raster (Swift Graphic Raster), PDF (Ver.1.7), JPEG (Ver. JFIF 1.02)

Hard Drive

320 GB

Memory

Dimensions W x D x H

Main Unit, Stand and Basket
1593 x 984 x 1168 mm (Basket Open)
1593 x 766 x 1168 mm (Basket Closed)
123 kg (including Roll Holder Set, excluding ink and print heads)
Main Unit, Roll Unit, Stand and Basket
143 kg (including Roll Holder Set, excluding ink and print head)

Number of Nozzles

18,432 nozzles (1536 nozzles x 12 colour)

Print Resolution

2400 dpi x 1200 dpi

Nozzle Pitch

600 dpi x 2 includes Non-firing nozzle detection and
compensation system

Line Accuracy

±0.1% or less
User adjustments necessary. Printing environment and
media must match those used for the adjustments.
CAD paper required: Plain paper, CAD tracing paper,
coated paper, CAD translucent matte film only

Ink Droplet Size

minimum 4 pl per colour

Ink Capacity

Sales Ink: 160ml/330ml/700ml
Bundled Starter Ink: 330ml

Ink Type

Pigment inks – Black, Matte Black, Cyan, Magenta, Yellow,
Photo Cyan, Photo Magenta, Grey, Photo Grey, Red, Blue,
Chroma Optimiser

Standard Interfaces

USB A Port: USB Memory Direct Print for JPEG/PDF files
USB B Port: Built-in Hi-Speed USB 2.0
Ethernet: 10/100/1000 base-T
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b

PRINT TIME FOR A0 PAGE SIZE

Plain Paper Print Mode – Print Time
Fast 1:37 min
Standard 2:51 min

Coated Paper Print Mode – Print Time
Standard 2:51 min
High Quality 5:36 min

Glossy Photo Paper Print Mode – Print Time
Standard 6:21 min
High Quality 10:05 min

Media Feed and Output

Roll Paper: One Roll, Front-loading, Front Output
Optional Roll Paper: One Roll, Front-loading, Front Output
Cut Sheet: Front-loading, Front Output (Manual feed
using media locking lever)

Media Width

Roll paper: 203.2 ~ 1118 mm
Cut sheet: 203.2 ~ 1118 mm

Media Thickness

Roll/Cut: 0.07 ~ 0.8 mm

Minimum Printable Length

203.2 mm

Maximum Printable Length

Roll paper: 18 m (Varies according to the OS and
application)
Cut sheet: 1.6 m

Media Core Size

Internal diameter of roll core: 2"/3"

Margins Printable area

Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm
Roll paper (borderless): Top: 0 mm, Bottom: 0 mm, Side:
0 mm
Cut sheet: Top: 3 mm, Bottom: 20 mm, Side: 3 mm

Media Feed Capacity

Roll Paper: One roll. If second option is added then
automatic switching is possible
Cut Sheet: 1 sheet

Media Take-up roll unit

Optional – Dual direction roll take up unit allowing print
surface to be wound inside or outside of the roll

Borderless Printing Width (Roll Only)

515 mm (JIS B2), 728 mm (JIS B1), 1030 mm (JIS B0),
594 mm (ISO A1), 841 mm (ISO A0), 10”, 14”, 17”, 24”, 36”,
42”, 44”, 257 mm (JIS B4)*, 297 mm (ISO A3)*,
329 mm (ISO A3+)*, 420 mm (ISO A2)*, 8”*, 16”*, 30”*,
300 mm*
*Some environmental conditions may not produce the desired result

Maximum number of delivered prints

Standard position: 1 sheet
Flat position: A2 landscape, glossy paper less than 10
sheets, Coated paper less than 20 sheets
(excludes strong curled condition)

Physical Dimensions WxDxH (mm) and Weight (Kg)

1593 mm x 984 mm x 1168 mm (Basket Opened)
1593 mm x 766 mm x 1168 mm (Basket Closed)
Weight approx 123 kg (including Roll Holder Set,
excluding ink and print heads)

Packaged Dimensions WxDxH (mm) and Weight (Kg)

Printer: (Main unit and stand with pallet):
1820 mm x 915 mm x 1019 mm,
Weight approx: 174 kg
Roll Unit: 1727 mm x 562 mm x 461 mm,
Weight approx: 31 kg

Power Supply

AC 100-240V (50-60Hz)

Power Consumption

Operation: 112 W or less

Sleep Mode

3.6W or less
Default setting for the time to enter the
Sleep mode: Approx. 5 Minutes
Power off: 0.5 W or less

Operating Environment

Temperature: 15~30°C, Humidity: 10~80% RH
(no dew condensation)

Accoustic Noise (Power/ Pressure)

Operation: 48 dB (A)
(Glossy paper, Print priority: Standard)
Standby: 35 dB (A) or less
Operation: 6.4 Bels or less
(Glossy paper, Image, Print priority: Standard)
(Measured on ISO7779 standard)

Enviroment Certificates

International Energy Star Program (WW), RoHS

Software Included

imagePROGRAF PRO Printer Driver, Print Plug-In for
Office, Quick Utility Toolbox and PosterArtist Lite
Other software available as Download from Web.

What's in the Box?

Printer, 1 x print head, 1 x Maintenance Cartridge, 3”
Paper Core Attachment, EU & UK Power Cable, 1 Set
of Starter Ink Tanks, Set Up Guide, Safety/Standard
Environment Leaflet, User Software CD-ROM (OSX/
Windows), PosterArtist Lite CD-ROM, EU Biocide Sheet,
Eurasian Economic Union Sheet, Important Information
Sheet, Quick Guide and Printhead Alignment Sheet

Optional Items

Roll Unit: RU-41
2/3” Roll Holder: RH2-45

User Replaceable Items

Ink Tank: PFI-1100 (160ml), PFI-1300 (330ml),
PFI-1700 (700ml)
Print Head: PF-10
Cutter Blade: CT-07
Maintenance Cartridge: MC-30
